Category

Analog Multitesters

SANWA analog multitesters cover voltage, current, resistance and model-specific functions for users needing analog electrical measurement. Bhumika is SANWA’s authorized Canadian distributor and provides quotes for Canada and the USA.

Which analog multitesters does Bhumika supply?

SANWA YX360TRF analog multitesterSANWAYX360TRFSANWA YX360TRF Analog Multitester

Taut-band analog multitester with DC zero-center ranges.

  • Taut-band
  • CAT III 600 V
  • DC zero-center
20 kΩ/V · CAT III 600 VView specifications →SANWA EM7000 FET electronic analog testerSANWAEM7000SANWA EM7000 Analog Multitester

FET electronic analog tester with low-current sensitivity.

  • FET electronic
  • DC zero-center
  • 40 Hz–1 MHz

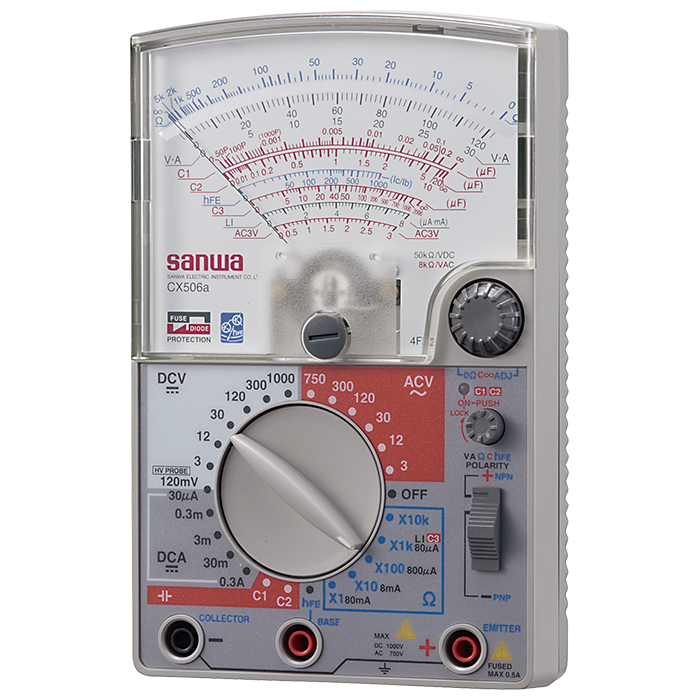

0.12 µA min · 2.5–12 MΩ inputView specifications →SANWA CX506a analog capacitance multitesterSANWACX506aSANWA CX506a Analog Multitester

Analog capacitance measurement from 50 pF to 2000 µF.

  • 50 pF – 2000 µF
  • 26-contact switch
  • LED continuity
50 pF – 2000 µF capacitanceView specifications →

What should I consider before buying?

Compare the stated input resistance, measurement ranges and functions for each model. YX360TRF has 20 kΩ/V DC sensitivity and optional HV-10T and HFE-6T accessories; EM7000 lists 2.5–12 MΩ DC input resistance. CX506a lists capacitance from 50 pF to 2000 µF.

What do buyers usually ask?

Which functions distinguish these analog multitesters?

YX360TRF has a drop-shock-proof taut-band movement and DC zero-center ranges. EM7000 is a FET electronic tester with a lowest DC current range of 0.12 µA. CX506a measures capacitance from 50 pF to 2000 µF.

Which accessories extend YX360TRF measurements?

The optional HV-10T probe enables DC 25 kV measurement, and the optional HFE-6T enables hFE measurement to 1000.

What DC input resistance is listed for CX506a?

CX506a lists 50 kΩ/V on its DC 3–300 V ranges.
